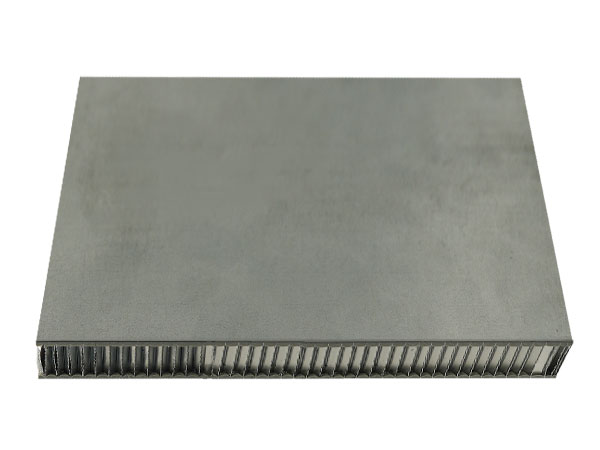

Galvanized Steel Honeycomb Panel

Total thickness:

6-25mm Customizable

Aluminum thickness:

0.3-0.4mm Customizable

Honeycomb Core Shape:

Six Deformations

Intro：

Arubes Galvanized Steel Honeycomb Panel, an innovative high-tech material, it combines the durability of steel, high strength, high hardness characteristics and honeycomb panel light, fire, sound insulation and other multiple advantages.

Has: light, low installation load; The surface of the plate has high pressure resistance, high specific strength per unit mass, high specific stiffness and high safety factor. Each area is large, high flatness, not easy to deformation; Both completely non-toxic green quality; Excellent performance of sound insulation and heat preservation; Saving materials, low cost; Strong corrosion resistance and many other excellent characteristics.


Technical Index

Test item	Unit	Galvanized Steel Honeycomb Panel Index 18mm0.4/0.4
Maximum Load-bearing Load	KN/m2	≥ 3.8
Proportion	g/cm3	7.4
Drum Peel Strength	N·mm /mm	≥ 80
Flat Crush Strength	MPa	≥ 1.5
Flat Crush Elastic Modulus	MPa	≥ 45
Plane Shear Strength	MPa	≥ 0.7
Plane Shear Elastic Modulus	MPa	≥ 6.0
The Bending Stiffness	N·mm	≥ 7.0 ×108
Shear Stiffness	N	≥ 1.5 ×104
Impact Resistance	/	No obvious deformation or damage
Boiling Water Resistance	/	no abnormity
Side Length	mm	±2
Thickness	mm	±0.2
Diagonal Length Difference	mm	≤ 3
Edge Straightness	mm/m	≤ 2
Smoothness	mm/m	≤ 2

Product Comparison Table

Performance Index	Wood type board	Aluminum-plastic composite board	Aluminium veneer	ARUBES Galvanized Steel Honeycomb Panel	ARUBES Aluminium Honeycomb Panel	ARUBES Multi-layer Honeycomb Panel

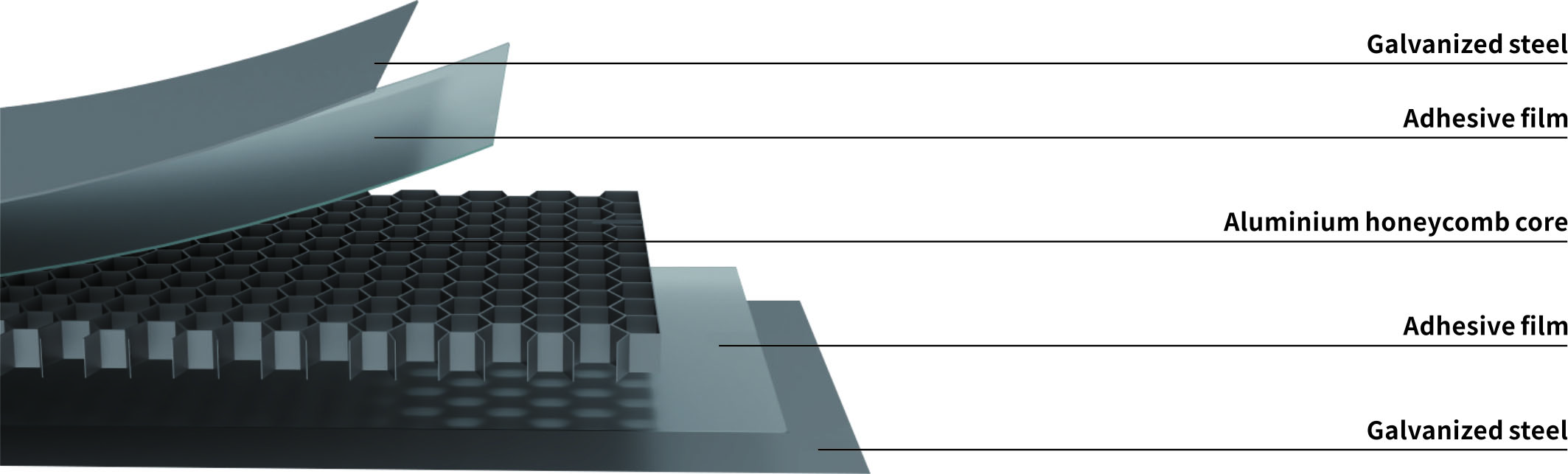

Structure	Solid Wood Construction	Sandwich Structure The PE intermediate layer is composed of an upper and lower aluminum plate	Aluminum Construction Pure aluminum plate	Steel Aluminum Structure Aluminum honeycomb core and high strength galvanized steel composite	Aluminum Construction Aluminum honeycomb core and upper and lower alloy aluminum plate composite	Multilayer Structure The aluminum honeycomb core is composed of a composite surface of an upper and lower fireproof core plate and an alloy aluminum plate
Durability	★★★ Normal	★★★ Normal	★★★★ Good	★★★★★ Strong and durable	★★★★★ Strong and durable	★★★★★ Strong and durable
Environmental Protection Index	★★ Poor, uneven environmental protection levels	★★★★ Energy saving, environmental protection can be recycled	★★★ Low cost can be recycled	★★★★★ Material saving, energy saving, environmental protection can be recycled	★★★★★ Material saving, energy saving, environmental protection can be recycled	★★★★★ Material saving, energy saving, environmental protection can be recycled
Surface Material	★ Melamine /PVC/PET/ Paint	★★★★ Paint, print or other material color film	★★★ Spray paint	★★★★★ Negative ammonia ion PETG membrane	★★★★★ Negative ammonia ion PETG membrane	★★★★★ Negative ammonia ion PETG membrane
Water Repellency	★ Susceptible to moisture, swelling deformation, mold	★★★★ It has good waterproof and moisture-proof performance	★★★★★ Hydrophobic	★★★★★ Hydrophobic	★★★★★ Hydrophobic	★★★★★ Hydrophobic
Color Uniformity	★ Different shades of color, different textures of wood	★★★★★ Roller coating process uniform color	★★★ Color difference of spraying process is difficult to control	★★★★★ The laminating process is durable and stable	★★★★★ The laminating process is durable and stable	★★★★★ The laminating process is durable and stable
Structural Safety	★★★ Susceptible to environmental influences	★★★★ High structural strength	★★★★★ High structural strength	★★★★★ Superior structural strength	★★★★★ Superior structural strength	★★★★★ Superior structural strength
Product Weight	★★★ 18mm 9-25kg/m Slightly lighter	★★ 18mm20-27kg/m Heavier	★ 18mm48-49kg/m Heavy	★★★★ 18mm6.0-7.5 kg/m Lighter	★★★★★ 18mm4.0-5.5 kg/m Levity	★★★★★ 18m5.0-6.5 kg/m Levity
Machinability	★★★★★ Tractability	★★★★★ Tractability	★ Many solder joints, labor costs, low production efficiency	★★★★★ Tractability	★★★★★ Tractability	★★★★★ Tractability
Deformation resistance to wind pressure	★★★ Lesser	★★★★ Lesser	★★★★★ Small	★★★★★ Small	★★★★★ Small	★★★★★ Small
Heat preservation and insulation	★★★★ Good	★★★★ Good	★★★ Average	★★★★★ Excellent	★★★★★ Excellent	★★★★★ Excellent
Sound insulation and noise reduction	★★★ Good	★★★★ Good	★★★ Average	★★★★★ Excellent	★★★★★ Excellent	★★★★★ Excellent
